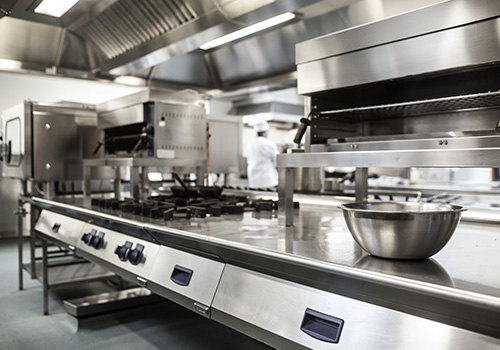

Commercial kitchen environments operate under stringent health and safety standards. Traditional commercial grills and griddles require Type 1 ventilation hoods equipped with integrated fire suppression systems. Installing these commercial hoods presents a significant financial barrier for smaller foodservice operations, often costing between $960 and $1,170 per linear foot.

To solve this cost bottleneck, ventless cooking equipment has gained rapid market adoption. Commercial-grade griddles featuring internal ventilation and fire suppression allow restaurants, food trucks, and convenience stores to expand their menus without investing in expensive Type 1 hood infrastructure.

Leveraging VCC's extensive catalog of illuminated components, the design team quickly identified the ideal platform. Rather than embarking on a lengthy ground-up custom build, VCC modified a standard platform to give the client a fast, cost-effective semi-custom solution.

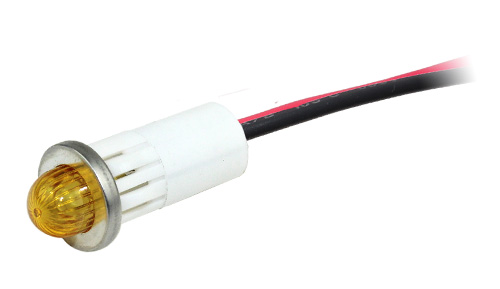

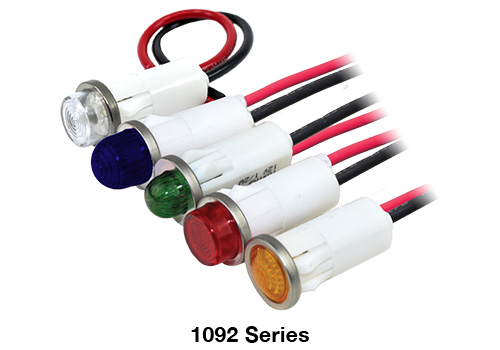

VCC re-engineered the Amber 1092 Series LED Panel Mount Indicator (PMI) to operate at 250V with wire leads, fulfilling every design requirement:

• High-Voltage 250V Integration: Increasing operating power to 250V allowed direct connection to standard commercial grill circuits. This eliminated the need for a separate 12V step-down transformer and removed the costs of an extra BOM component.

• 100,000-Hour Operating Life: Replaced legacy, short-lived 240V neon solutions with solid-state LED technology, providing reliable indication for up to 100,000 hours.

• High-Hat Lens Optics: Reaches full brightness in microseconds, utilizing a prominent high-hat lens profile to provide superior 180-degree visibility across the kitchen floor.

• ASTM 2000 Gasket Sealing: Integrated a specialized gasket conforming to ASTM 2000 standards to protect internal panel electronics against grease, moisture, steam, and harsh sanitizing chemicals.

• Snap-In Assembly: Designed to snap directly into standard 0.500-inch (12.7mm) diameter panel cutouts without additional retention hardware, enabling faster assembly line installation.

A leading ventless grill manufacturer approached us with a unique design challenge. The client wanted to optimize its high-efficiency grill design with a solution that met the following requirements:

Key engineering and operational requirements included:

• 240V Direct Operation: High-voltage capability to operate directly on a 240V line without an external step-down transformer.

• Extended Service Life: Solid-state LED reliability to replace short-lived 240V neon bulbs and reduce field calls.

• 180-Degree Optical Visibility: High-brightness signaling with a wide viewing angle for immediate identification across busy commercial kitchens.

• Grease and Moisture Protection: Ruggedized sealing capable of withstanding steam, food grease, and harsh cleaning chemicals.

• Tool-Less Panel Assembly: A streamlined snap-in mechanism to reduce line assembly time and manufacturing labor.

By modifying an existing indicator platform instead of starting a ground-up development project, VCC helped the client optimize its high-efficiency ventless grill for an improved end-user and operator experience:

• Lower Manufacturing & BOM Costs: Eliminating the step-down power converter simplified internal panel wiring and directly drove down unit costs.

• Streamlined Indicator Installation: Tool-less snap-in mounting into standard 0.500-inch holes reduced assembly time on the production line.

• Instantaneous Visual Communication: High-hat lens geometry reaches full brightness in microseconds, ensuring operators can verify power status instantly from any angle.

• Long-Term Field Reliability: Solid-state LED construction delivers up to 100,000 hours of continuous operation, dramatically reducing field service calls.

• Enhanced Operational Safety: ASTM 2000 gasket sealing protects control panel electronics from harsh kitchen environments, ensuring safe, reliable daily operation.

VCC modified a proven standard product to deliver a faster, more cost-effective solution than a fully custom project. Whether an application calls for a simple electrical modification, custom optical tailoring, or a ground-up design, VCC brings deep technical expertise to help OEM engineering teams solve complex interface challenges quickly.
