A well-placed LED or light pipe is far more than a visual detail—it is often the critical interface feature that separates an intuitive, safe product from one that creates operator confusion or fails in the field. Delivering optimized, application-specific solutions requires pushing beyond off-the-shelf components to address underlying optical, mechanical, and thermal trade-offs.
This guide explores the practical mechanics of LED and light pipe integration, covering key design choices, optical coupling efficiency, thermal considerations, and real-world engineering challenges across demanding industries.
Evaluating Technical LED Design Choices
Selecting the right LED package is not simply a matter of lumen output. Engineers must evaluate physical space constraints, automated assembly needs, and circuit-level behavior to ensure high reliability over the component’s operational lifetime.
Through-hole LEDs deliver superior mechanical anchoring, making them ideal for high-vibration applications, heavy industrial enclosures, and ruggedized field equipment. However, their larger physical footprint and requirement for wave soldering or manual assembly make them unsuitable for high-density PCB layouts.
Surface-Mount Device (SMD) LEDs
SMD LEDs are the standard choice for space-constrained assemblies and automated pick-and-place manufacturing. Their low profile allows for seamless integration into compact enclosures, while their flat emitting surfaces enable tight optical coupling when paired directly with light pipes.
High-Power LEDs
Designed for applications demanding maximum luminous intensity—such as long-distance status signaling in aerospace or outdoor automotive lighting—high-power LEDs deliver significant output. However, their high drive currents generate concentrated thermal energy, requiring dedicated PCB copper pours, thermal vias, or external heat sinks to prevent junction degradation.
Bi-Color and RGB LEDs
Multi-chip LEDs enable complex status signaling through a single panel aperture. By combining red, green, and blue dies within a single package, engineers can communicate multiple system states (e.g., standby, active, fault) with fewer physical components on the board.

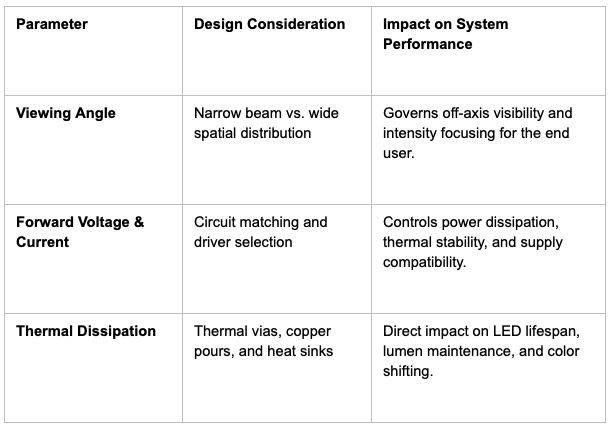

Beyond selecting the right package architecture, engineers must evaluate core electrical and optical parameters to ensure circuit compatibility and long-term operating stability:
Industrial Applications for Advanced Illumination
Integrating LEDs and light pipes requires matching component specs to industry-specific environmental and operational constraints.
Medical Devices
Sterile environments require smooth, wipe-down surfaces free of mechanical gaps. Utilizing IP-rated panel-sealed light pipes allows board-mounted LEDs to remain safely isolated behind protective enclosures in medical grade applications while delivering clear, high-contrast visual signals to medical personnel.
Aerospace Cockpits & Avionics
Severe vibration and thermal cycling demand mechanical durability and circuit redundancy. Combining bi-color LEDs with rigid, panel-mounted light pipes in aerospace applications delivers unambiguous status indication without adding unnecessary wiring harness weight or structural complexity.
Severe vibration and thermal cycling demand mechanical durability and circuit redundancy. Combining bi-color LEDs with rigid, panel-mounted light pipes in aerospace applications delivers unambiguous status indication without adding unnecessary wiring harness weight or structural complexity.
EV & Automotive Interfaces
Vehicle dashboards, center consoles, and outdoor charging stations require uniform light distribution under high ambient sunlight. Custom LED arrays paired with frosted or diffused light pipes eliminate hot spots, providing clear visual feedback for drivers and operators.
Industrial Automation Panels
Large machinery control panels require long-distance status visibility and low power consumption. Driving a single high-output LED through a multi-branch light pipe illuminates multiple panel status points simultaneously—reducing total component count, board real estate, and thermal generation.
Conclusion: Engineering Better HMIs
LEDs and light pipes are far more than decorative components—they are critical design elements that define the usability, safety, and operational reliability of your HMI. By mastering technical nuances ranging from optical coupling efficiency and viewing angles to active thermal management, engineers can deliver interface assemblies that are both innovative and fail-safe.
At VCC, our role extends beyond supplying standard parts. We partner directly with engineering teams to solve complex optical challenges and build custom illuminated solutions that make technology clearer, safer, and more efficient.
Frequently Asked Questions (FAQs)
What Is LED Light Pipe Technology and How Does It Work?
LED light pipe technology uses transparent or translucent optical conduits to transmit light from a PCB-mounted LED to an external interface panel. Utilizing rigid or flexible optical materials, light pipes efficiently guide light through total internal reflection, allowing LEDs to remain protected behind sealed enclosures or crowded board layouts in medical, automotive, aerospace, and industrial applications.
What Is the Difference Between Rigid and Flexible Light Pipes?
Rigid light pipes offer precise, direct optical transmission for straight-line pathways but require tight assembly alignment tolerances. Flexible light pipes use fiber-optic channels to route light around internal obstacles, structural components, or dense circuitry, making them ideal for tight or complex enclosure constraints.
How Do Engineers Choose the Right LED and Light Pipe Combination?
Engineers must evaluate LED package style (SMD vs. Through-Hole), luminous intensity, viewing angle, and thermal dissipation (forward voltage and current) alongside mechanical constraints. Pairing the LED with the proper light pipe geometry—whether rigid, flexible, or custom-molded—ensures optimal optical coupling efficiency, minimal light bleed, and robust field performance.
